Description

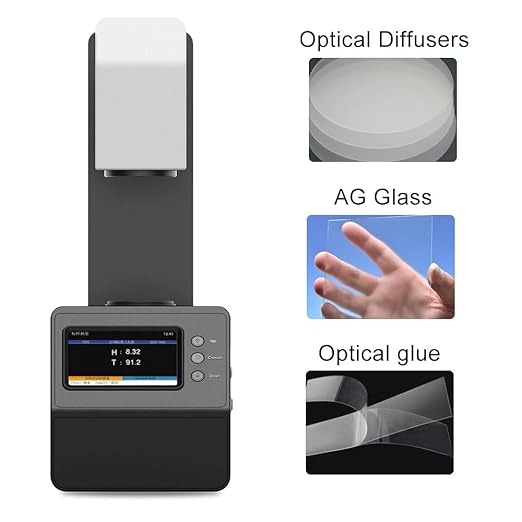

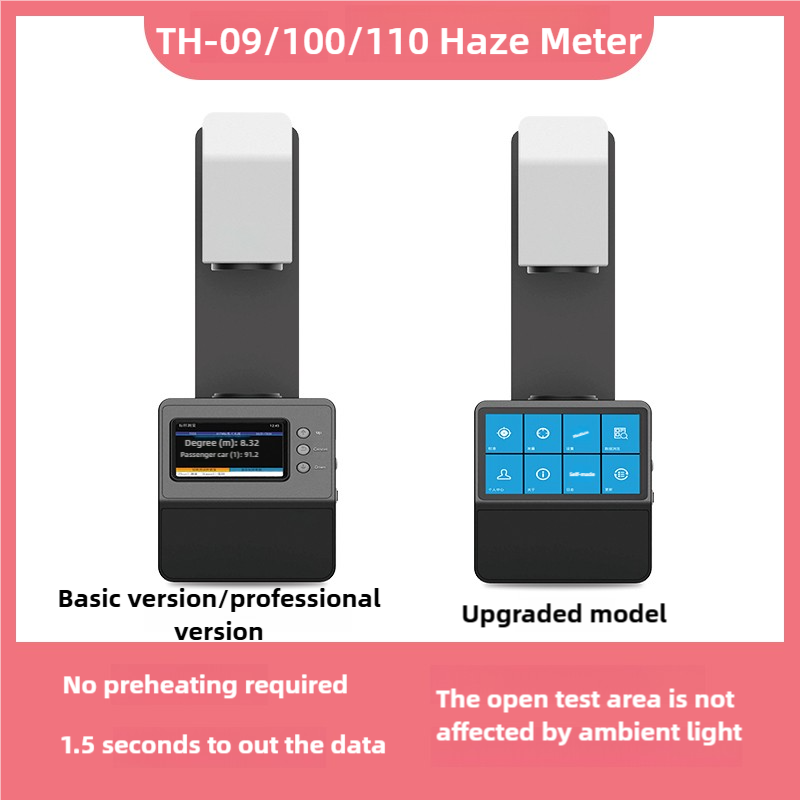

Th-09/100/110 Haze Meter complies with ISO & ASTM double standards and is equipped with double caliber (21mm / 7mm). It is suitable for one-stop measurement solution of haze and transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.

Th series advantageous performance:

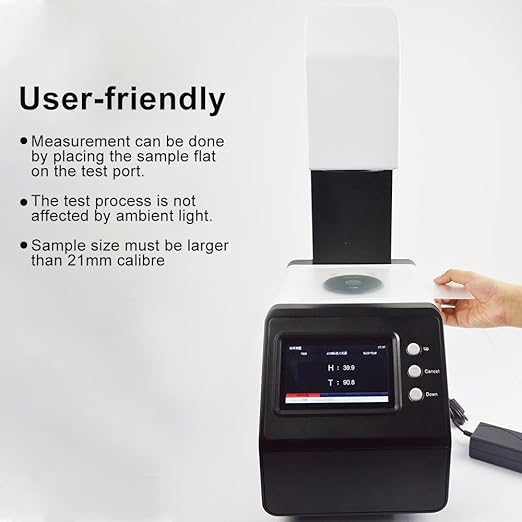

• It has an open measurement area, which can meet the measurement of samples of any size
• Unique signal processing technology ensures that the measurement results are not disturbed by external ambient light
• There are two measurement states: vertical and horizontal, which can be measured as convenient as possible
• Without preheating, the test time is only 1.5 seconds



The special configuration of th-110 makes the instrument even more powerful:

• It adopts 7-inch touch screen operation and Android operating system
• Double caliber (21mm / 7mm)



Parameters

Model	TH-09	TH-100	TH-110
Illuminants	CIE-A,CIE-C	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Parameters	Haze and transmittance under ASTM standard	Haze and transmittance under ASTM and ISO double standards
Spectral response	CIE spectral function y / V（ λ)
Geometry	0/d
Test Aperture	21mm	21mm	21mm,7mm
Measurement Range	0-100%
Haze Resolution	0.01%
Haze Repeatability	0.1	0.08	0.05
Sample size	Thickness≤145mm
Display	5-inch TFT LCD	5-inch TFT LCD	7-inch touch screen, Android system
Memory	10000 values	20000 values	Mass storage
Interface	USB interface
Power	DC12V/3A
Working temperature	5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation
Storage temperature	-20 ℃ ~ 45 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation
Size (LxWxH)	Length x width x height:310mmX215mmX540mm
Weight	6kg
Standard Accessory	PC management software(Haze QC)
Optional	Measuring fixture, haze standard plate customized aperture
