Host

Support 12 different probes for UVA, UVB, UVC, etc.
Record UV power, UV energy and test duration together

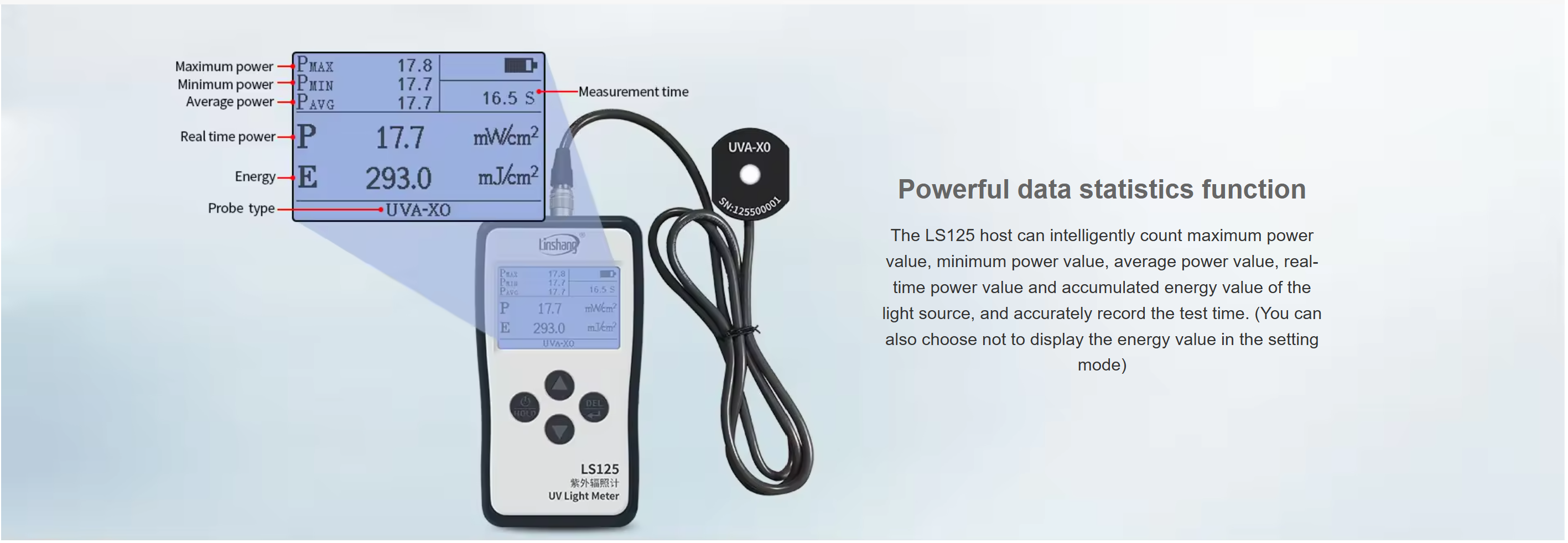

Automatic statistics of maximum, minimum and average power

Categories: Linshang, Other

Description

Description

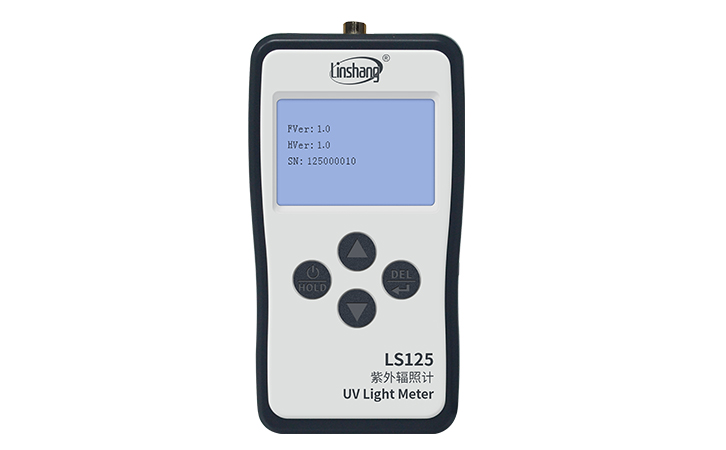

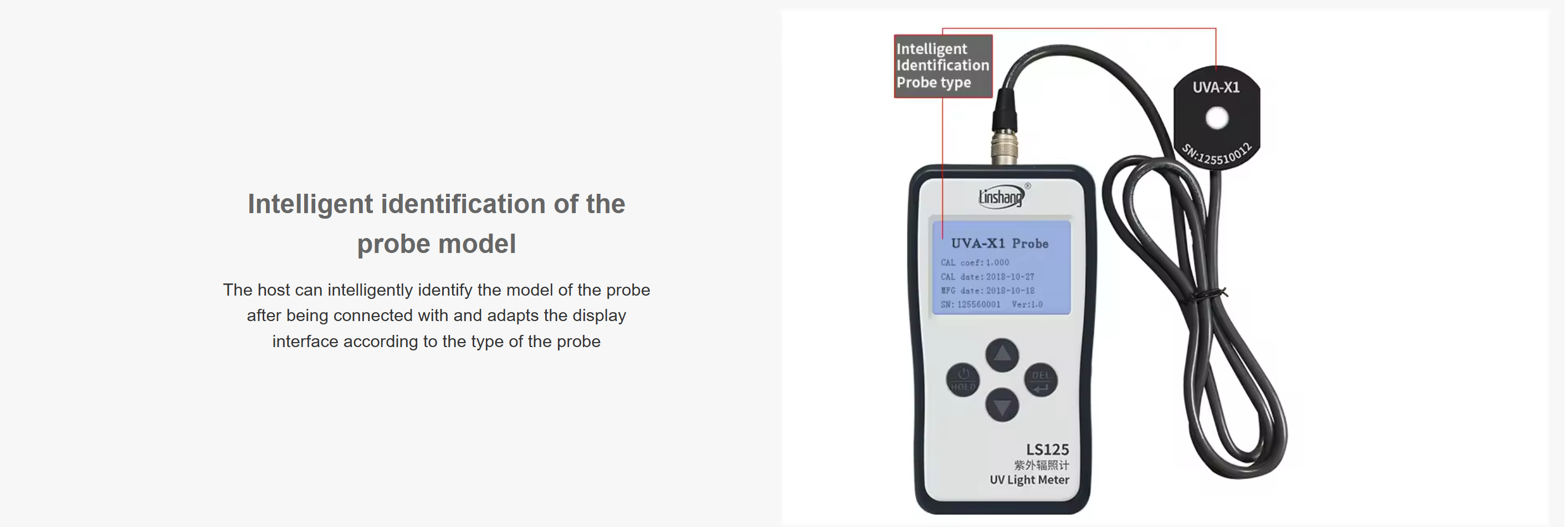

LS125 is a smart host that can support 12 different probes. It can intelligently identify different probes. This host is connected to the probe through an aviation plug. The main function of the host is to display test data. The host equipped with the probe can be used for ultraviolet intensity and energy detection. To use the host, you need to buy the corresponding probe to use with it as per your test requirements.

Parameters

Parameters	LS125 UV Light Meter

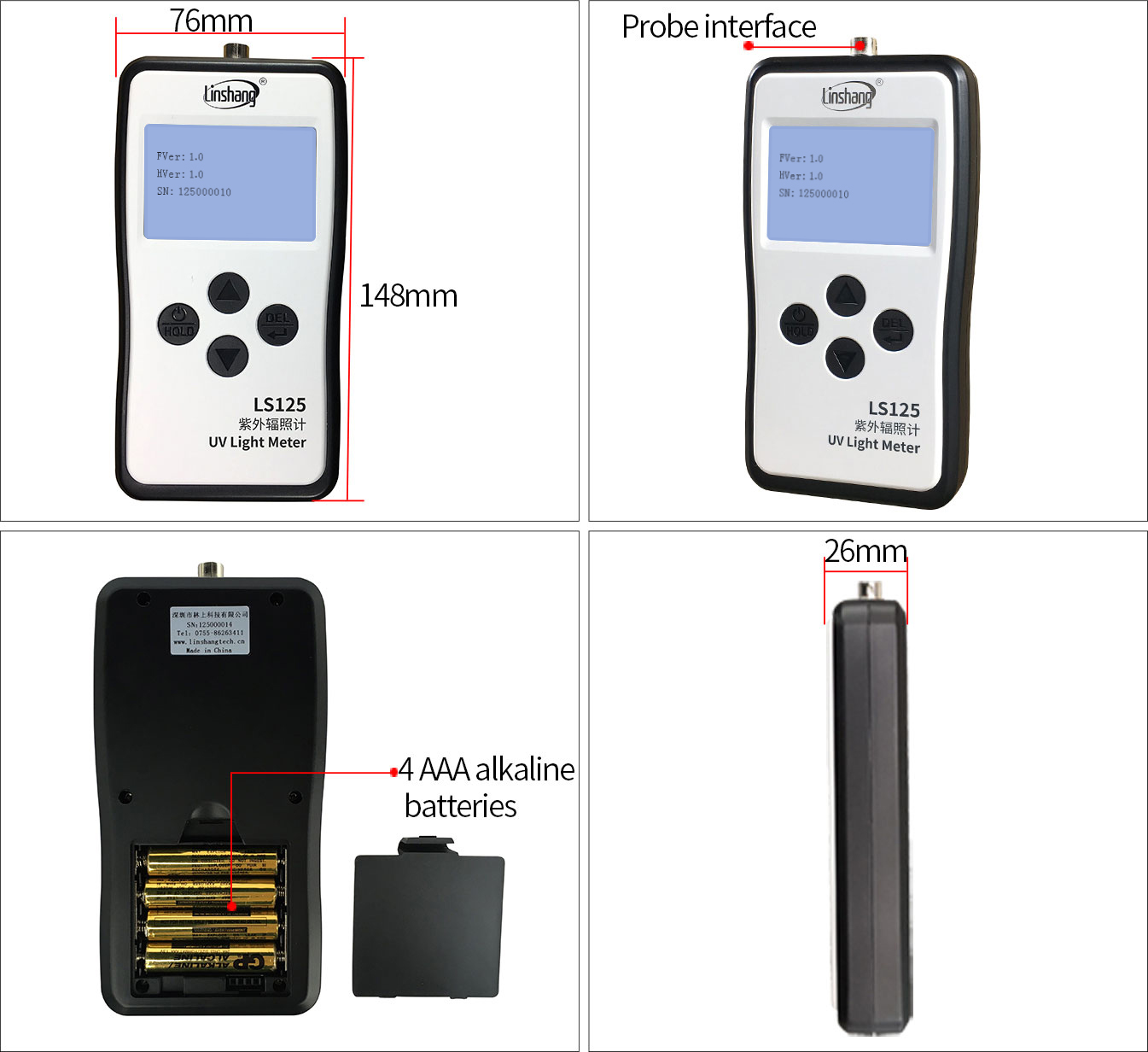

Weight	About 194g
Dimension	148mm * 76mm * 26mm (LWH)
Display	240*160 dot matrix LCD
Power Supply	4 AAA alkaline batteries
Probe Connection	Push pull (Snap-in style)，Aviation socket

Application

Ultraviolet light includes UVA band (315nm-420nm), UVB band (280nm-315nm) and UVC band (230nm-280nm). UVA band is mainly used in photocuring, lithographic exposure, ultraviolet light source, integrated circuit lithography and other industries; UVB band UV lamps mainly include physiotherapy lamps in hospitals and health care places, plant growth lamps and UVB fluorescent lamps for reptiles; UVC band also known as short-wave sterilization ultraviolet, ultraviolet germicidal lamps emit UVC short-wave ultraviolet. Ultraviolet germicidal lamps are mainly used for disinfection and sterilization. They are often used in hospitals, transfer windows of drug factories, disease control centers and sewage treatment plants. The LS125 handheld UV measurement device is widely used. Many of the above industries require different ultraviolet probes to detect the radiation intensity or energy value.

The UV measurement uses high-precision UV filter and professional UV detector. It almost no response to visible wavelengths, eliminate the impact of other spectral bands on the measurement accuracy. More accurate than ordinary illuminance meter.

Probe Selection

According to the spectral response range, application, measuring range and test aperture size of the light source, we have introduced 9 different types of probes (probe must be purchased separately). The selection table is as follows:

Select according to the spectral response range and application of the light source

No.	Probetype	Spectral response range	Power range	Test aperture	Application
1	UVC-X0	230-280nm	0 – 200000 μW/cm²	Φ10mm	254nm UV sterilization mercury lamp
2	UVC-X2	210nm-250nm	0 – 200000μW/cm²	Φ10mm	222nm far UVC lamps
3	UVCWP-X1	230-280nm	0 – 200000 μW/cm²	Φ10mm	254nm UV sterilization mercury lamp,waterproof
4	UVCLED-X0	230-315nm	0 – 200000 μW/cm²	Φ10mm	260nm-285nm UV LED germicidal lamp
5	UVB-X0	280-315nm	0 – 200000 μW/cm²	Φ10mm	General UVB intensity and energy measurement
6	UVA-X0	315-400nm	0 – 2000 mW/cm²	Φ10mm	High pressure mercury lamp in UV curing industry
7	UVA-X1	315-400nm	0 – 200000 μW/cm²	Φ10mm	General UVA intensity and energy measurement
8	UVA-X2	315nm-365nm	0 – 200000μW/cm²	Φ10mm	340nm UVA aging lamps
9	UVALED-X0	340-420nm	0 – 200000 mW/cm²	Φ10mm	Area light source of UV LED in UV curing industry
10	UVALED-X1	340-420nm	0 – 200000 mW/cm²	Φ1mm	Point light source of UV LED in UV curing industry
11	UVALED-X3	340-420nm	0 – 200000 μW/cm²	Φ10mm	General UVA+UVV LED, low power measuring range
12	BL-X0	410nm-490nm	0 – 2000mW/cm²	Φ10mm	450nm blue light

Suggestion of Probes for Classic Industry Application

No.	Application	Suggested Probe
1	Detect UV Aging Box	UVA-X1, UVB-X0, UVA-X2
2	Detect Ambient Light and Sunlight	UVA-X1, UVB-X0
3	Detect Welding Arc	UVA-X1, UVB-X0, UVC-X0
4	Detect UV Light of Non-destructive Testing	UVA-X0
5	Detect UV Nail Lamp	UVALED-X3
6	Detect Plant Growth Lamp or Reptile Lamp	UVB-X0
7	Detecting the 222nm Far UVC Lamps	UVC-X2
8	Detecting the Medical Phototherapy Devices or LED Blue Therapy Light	BL-X0
